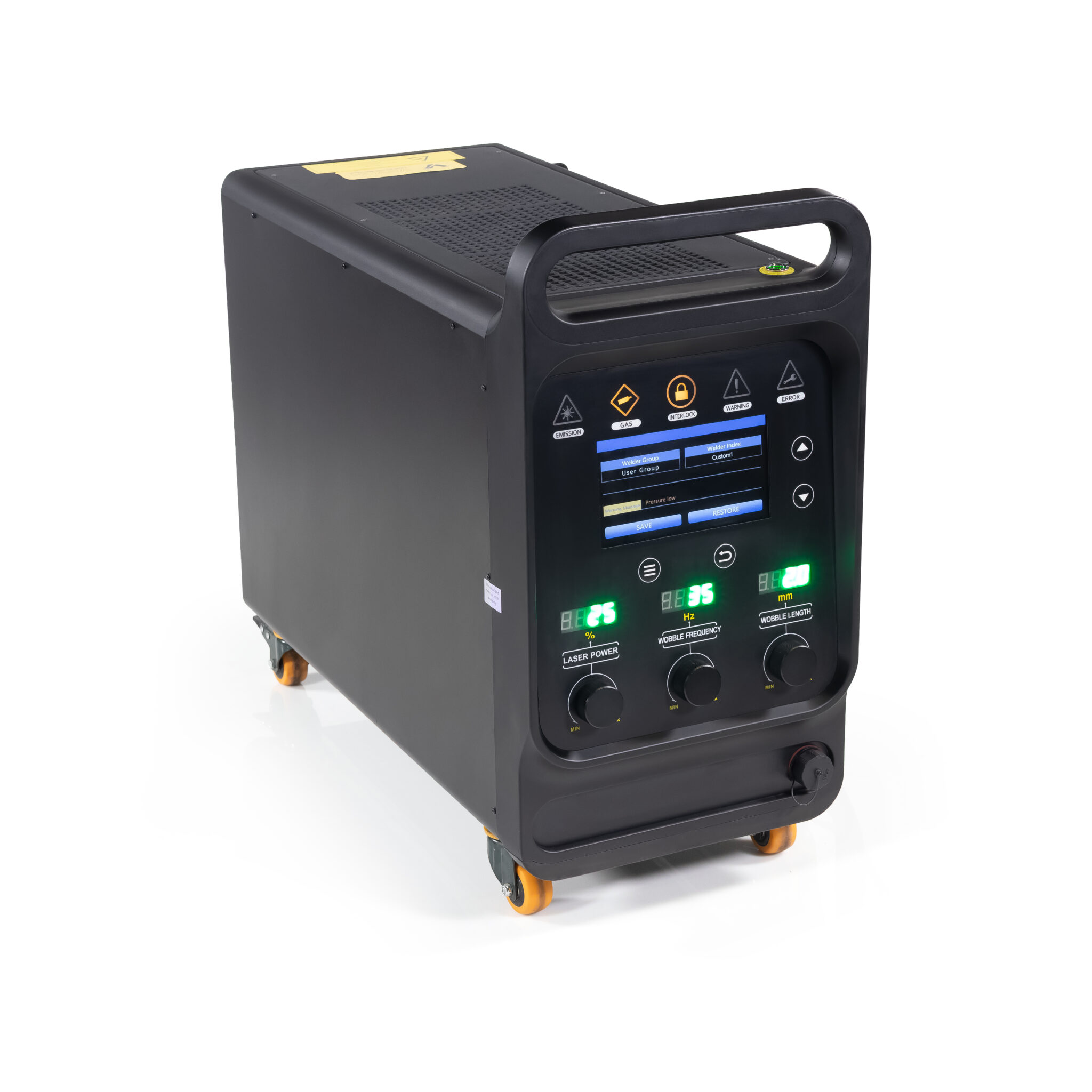

VEYON 12H-DC
Technical Characteristics
- Rated input power: Single phase 220V
- Input power frequency: 50/60 Hz
- Laser Power: 1200 W
- Rated Input Power: 4200 W
- Welding Speed: 20-200 cm/min
- Cooling Mode: Dual circuit refrigerant direct cooling
- Working temperature: –20 to 60 °C
- Storage temperature: –40 to 85 °C
- Working humidity: 0–90 %
- Product dimensions: 673 × 310 × 605 mm
- Product weight: 43 kg
- Applicable wire diameter: 0.8 / 1.0 / 1.2 / 1.6 / 2.0 mm
- Armored Cable Length: 5 / 10 / 15 / 20 m (customizable)
- Welding Mode: Spot welding / Continuous spot welding / Pulse welding / Continuous welding
Laser Welding
This fiber laser welder provides high-precision welding for a wide range of metals, including steel, aluminum, and copper. Its high-power output ensures fast, accurate welds with smooth, visually appealing seams—often eliminating the need for secondary grinding or post-processing.
The system is easy to learn and operate, delivering consistent, high-quality results across various material thicknesses. Its high-speed welding capability significantly boosts productivity.
Handheld Laser Gun
The compact handheld laser gun supports welding, cutting, cleaning, and weld seam cleaning through an intelligent control system. Lightweight and portable, it enables flexible operation with low running costs and no consumables required.
Mobile operation: 10-meter fiber optic cable for extended reach
Quick function switching: Easily change from welding to cleaning by replacing the focusing lens and laser head
Key Components & Features
Fiber Laser Generator Options: Compatible with premium brands such as Ruike, MAX, and IPG, offering high photoelectric conversion efficiency, low energy consumption, maintenance-free operation, and compact design.
Built-in Cooling System: Integrated cooling eliminates external wiring, enhances portability, and provides excellent dust protection.
Intelligent Control Panel: One-touch start and intuitive parameter adjustment ensure simple, efficient operation.
Key Advantages
Portable design: Compact and lightweight for easy transport and on-site operation
Multifunction capability: Welding, cutting, cleaning, and weld seam cleaning in one system
High precision: Produces clean, accurate, and aesthetically pleasing welds
Wide material compatibility: Suitable for stainless steel, aluminum, copper, brass, titanium, and more
User-friendly interface: Simple controls for quick setup and adjustments
Enhanced safety: Built-in safety features protect both operator and equipment
Advanced Laser Technology
Designed for efficiency and ease of use, this handheld fiber laser welding machine delivers faster, cleaner, and more precise results than traditional TIG or MIG welding—making it an ideal solution for modern metal fabrication.
| Laser Type | Fiber Laser |
| Max Laser Power | 1000 W |
| Center Wavelength | 1064 nm ± 10 |
| Laser Source | Raycus / Max / BWT |
| Modulation Frequency | 1-20000 Hz |
| Output Power | 0,5-1 mm |
| Fiber Cable Length | 10 m |
| Fiber Core Diameter | 50 μm |
| Wire Feeder | Single and double |
| Total Power Consumption | 7.5 kW |
| Rated Power | 220 ± 10 V AC, 50/60 Hz |
| Cooling Method | Water Cooling |
| Gross / Net Weight | 230 / 180 kg |
| Machine Dimensions (L*W*H) | 850*650*1035 |
| Packing Dimensions (L*W*H) | 1290*780*1190 |
Metal Welding Parameters
| Material | Gas used | Thickness(mm) | Laser power(W) | Wire diameter(mm) | Wire speed(mm/s) | Scanning speed(mm/s) | Scan width(mm) | Welding frequency(HZ) | Duty cycle | Barometric pressure(bar) |
| Stainless steel | Argon | 1 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 |
| 1.5 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2 | 1500 | 1.2 | 75 | 300 | 3 | 1000 | 100 | 10 | ||
| 2.5 | 2000 | 1.2 | 75 | 300 | 3 | 1000 | 100 | 10 | ||
| 3 | 2000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 | ||
| 4 | 3000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 | ||
| Carbon steel | Argon | 1 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 |
| 1.5 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2 | 1500 | 1.2 | 75 | 300 | 3 | 1000 | 100 | 10 | ||
| 2.5 | 2000 | 1.2 | 75 | 300 | 3 | 1000 | 100 | 10 | ||
| 3 | 2000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 | ||
| 4 | 3000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 | ||
| Galvanized sheet | Argon | 1 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 |
| 1.5 | 1500 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2 | 2000 | 1.2 | 75 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2.5 | 2000 | 1.6 | 60 | 300 | 3 | 1000 | 100 | 10 | ||
| 3 | 3000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 | ||
| Aluminum | Nitrogen(N2) | 1 | 1000 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 |
| 1.5 | 1500 | 1 | 90 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2 | 2000 | 1.2 | 75 | 300 | 2.5 | 1000 | 100 | 10 | ||
| 2.5 | 2000 | 1.6 | 60 | 300 | 3 | 1000 | 100 | 10 | ||
| 3 | 3000 | 1.6 | 60 | 300 | 3.5 | 1000 | 100 | 10 |
Does the laser welding machine require shielding gas?
Yes. Laser welding typically uses shielding gases such as nitrogen or argon to protect the molten metal from oxidation during the welding process. These gases help ensure stable welding performance, improved weld quality, and precise results.
What types of metals can be welded with the laser welding machine?
Handheld fiber laser welding machines are suitable for a wide range of metals, including stainless steel, carbon steel, and aluminum. Thanks to their high precision and energy control, they produce clean, strong, and consistent welds across various metal materials.
Is laser welding as strong as traditional arc welding?
Yes. Laser welding can achieve weld strength comparable to arc welding while offering significantly higher efficiency—often more than three times faster. It also delivers superior accuracy, minimal heat distortion, and cleaner weld seams.
How do I select the appropriate laser power for different material thicknesses?
Welding capacity depends on laser power. Our handheld laser welding machines support the following thickness ranges:
1000W: Carbon steel & stainless steel up to 3mm; aluminum up to 2mm
1500W: Carbon steel & stainless steel up to 4mm; aluminum up to 2.5mm
2000W: Carbon steel & stainless steel up to 5mm; aluminum up to 3.5mm
3000W: Carbon steel & stainless steel up to 7mm; aluminum up to 5mm
3000W double-sided welding:
Capable of welding carbon steel and stainless steel up to 15mm, and aluminum up to 10mm.
What weld seam sizes can the handheld laser welder handle, and is filler wire required?
The machine can weld various seam sizes. When the seam width exceeds 1mm, filler wire is generally required to properly fill the joint. The weld seam size should not exceed the diameter of the welding wire, as this determines the maximum fill capacity.
What functions are included in the 4-in-1 handheld laser welding machine?
The 4-in-1 handheld laser welding machine combines laser welding, laser cutting, weld seam cleaning, and laser surface cleaning into a single, efficient system—offering a versatile and cost-effective solution for modern metal fabrication.
Comparison Of Laser Welding And Traditional Welding (TIG/MIG)
Here is a comparison table between Laser Welding and Traditional Welding (TIG/MIG) to help you understand the differences in terms of key aspects such as precision, cost, and efficiency:
| Aspect | Laser Welding | Traditional Welding (TIG/MIG) |
|---|---|---|
| Heat Input | Very low, minimal thermal distortion | High, large heat-affected zone |
| Precision | Extremely high thanks to small spot size | Good but limited |
| Processing Speed | Very high | Moderate |
| Initial Investment | Higher | Low |
| Operating Costs | Lower long-term (no filler, high efficiency) | Low to moderate |
| Material Thickness | Best for thin to medium thickness | Ideal for medium–thick materials |
| Geometry Flexibility | Excellent for intricate, fine geometries | Limited with very small or complex shapes |
| Aesthetic Result | Clean, sharp, minimal weld seams | Visible weld seams |
| Automation | Requires advanced automation systems | Easier and cheaper to automate |
| Sustainability | More energy-efficient and sustainable | Higher heat and energy usage |
Application
Laser welding is suitable for a wide range of materials, including titanium, nickel, tin, zinc, copper, aluminum, chromium, niobium, gold, silver, and many other metals and alloys such as steel and Kovar. It can also join different types of metals—for example, copper to nickel, nickel to titanium, titanium to molybdenum, brass to copper, and low-carbon steel to copper.
